Hot dip galvanised suspended platform: 800 kg rated load, 7.5 m length, two 2.5 HP brake-motor hoists, two 30 kN anti-tilting locks.
Starting from ₹1,80,000
Ex-works Delhi. Delivered price for Delhi on request.

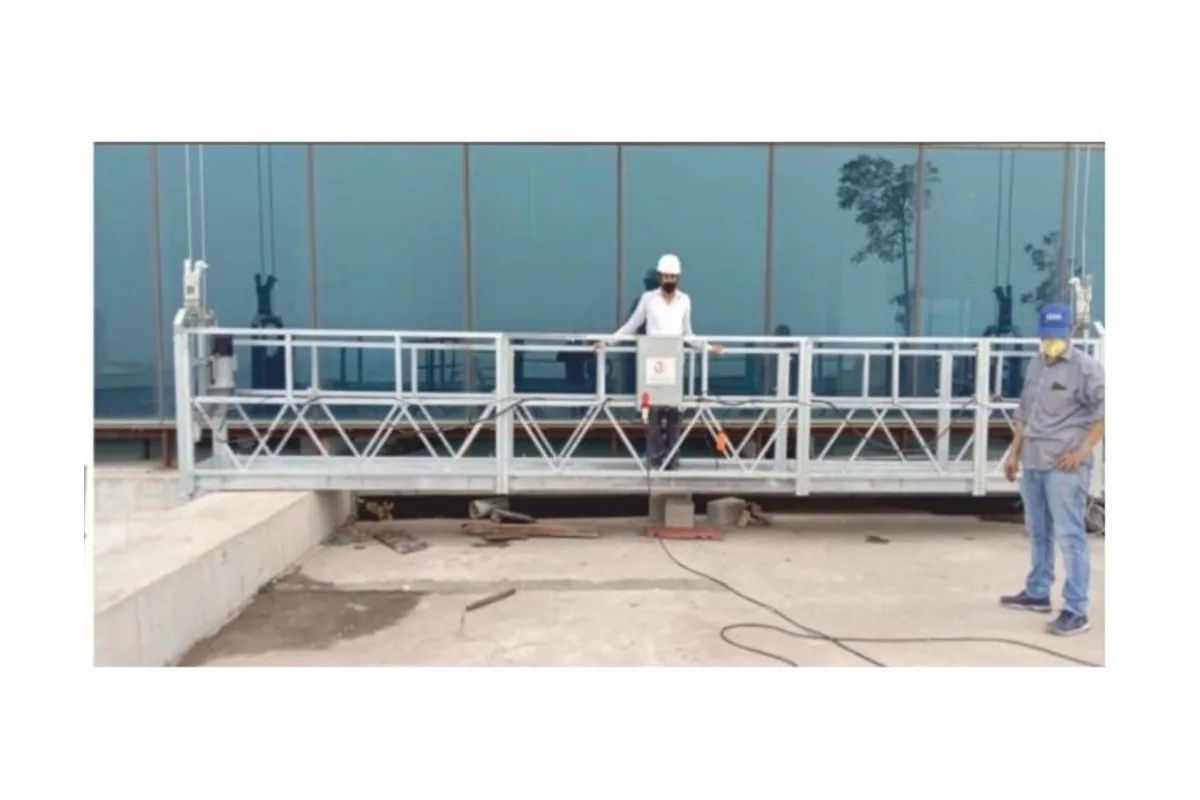

The ZLP 800 suspended platform is supplied to Delhi builders and facade contractors working on the outside of mid and high-rise buildings. The 7.5 m hot dip galvanised platform carries 800 kgs, runs on two 2.5 HP, 415 V hoists with electromagnetic brake motors and carries two anti-tilting 30 KN safety locks. Galvanising is what keeps it serviceable through a Delhi monsoon.
For the structure stage of the same building, the HGD12 electric placing boom places pumped concrete across a 12–14 m radius.
Price on request, usually quoted the same working day. Tell us the building height and the number of drops, and we will confirm the set before dispatch from Delhi. Our Alipur team supports commissioning on your roof and operator training in Delhi.
| Specification | ZLP 800 |
|---|---|
| Rated Load Capacity | 800 kgs |
| Platform Length | 7.5 Mts (2.5 mtr + 2.5 mtr + 1.5 mtr + 1 mtr) |
| Width | 2 feet |
| Wheels | 4 bottom wheels and 2 wall support wheels |
| Material | Hot Dip Galvanised |
| Height adjustment | 3.75 ft to 5.75 ft (adjustable distance 100 mm) |
| Hoist Model | ZLP 800 with electromagnetic brake motors, Alpha (a) type |
| Hoist Power | 2.5 HP, 415 V, 50 Hz |
| Hoist Quantity | 2 Pcs |
| Safety Lock Type | Anti Tilting, 30 KN |
| Safety lock Quantity | 2 Pcs |
| Control Panel Quantity | 1 Pcs |
| Electric Cable | 2.5 mm × 5 core, 100 Mtr |
| Steel Wire Rope | 9.1 mm, 100 Mtrs |
| Steel Wire Rope Quantity | 4 nos (2 nos working wire rope & 2 nos safety wire rope) |
Specifications as published in the Topall Impex catalogue. Configurations can vary.
Topall ke machines ka biggest benefit mujhe project productivity mein dikha. Site requirement ke according machine select karne mein team ne support kiya aur installation ke baad operators ko proper briefing mili.
Construction machinery mein purchase ke saath after-sales bhi equally important hota hai. Topall ke case mein commissioning aur operator training properly mili. Spare availability ke baare mein bhi team clear thi, isliye overall experience positive raha.
Humne Topall se different categories ki machines dekhi aur requirement ke according model select kiya. Sales team ne sirf expensive model push nahi kiya, site requirement samajhkar option suggest kiya. Ye approach achhi lagi.
Topall ke saath mera experience sirf machine delivery tak nahi raha. Machine site par commission karna aur operator ko practically samjhana unka strong point laga. Equipment lene ke baad confidence raha ki issue aaye to support available hai.
Tell other contractors how this machine performed on your site.
