220 V single-phase stirrup bending machine for 4–16 mm bar, 90° and 135° bends, 2.2 kW, 90 kg — runs on a domestic supply.
Starting from ₹30,000
Ex-works Delhi. Delivered price for Ahmedabad on request.

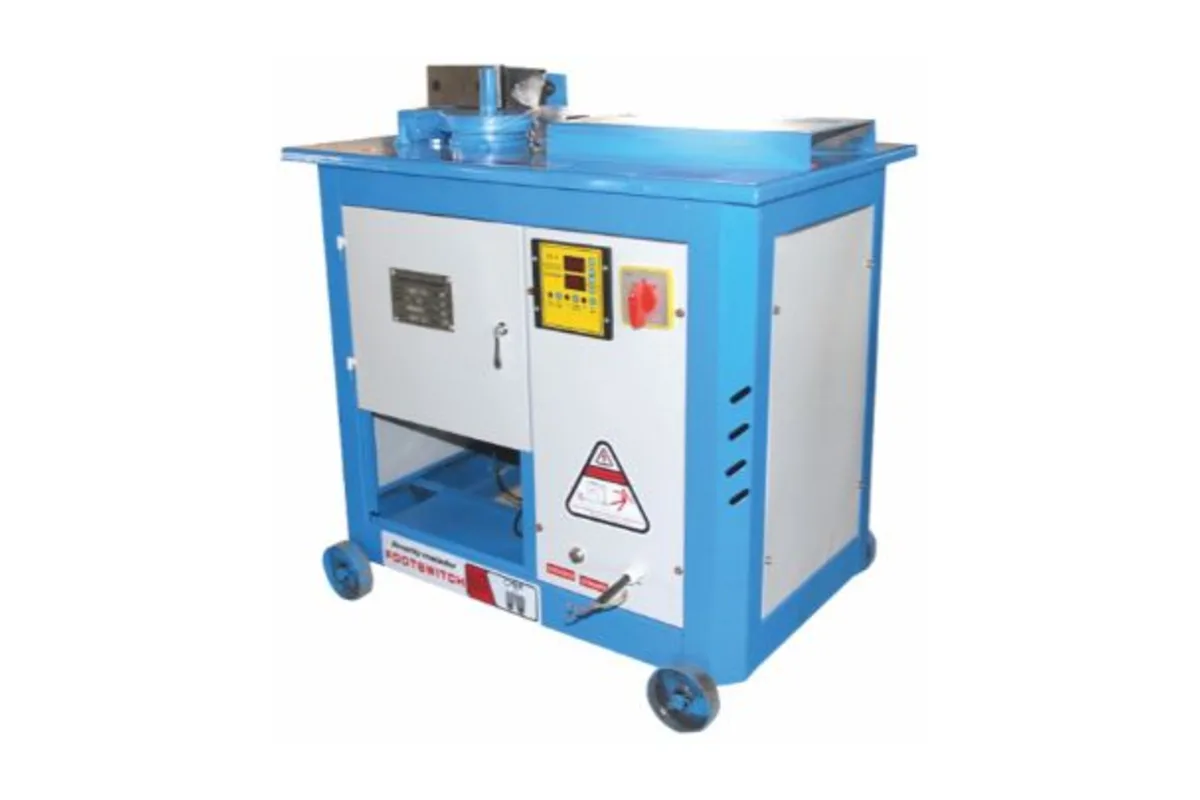

The GW20S stirrup bending machine is bought by small contractors in Ahmedabad who have a 220 V single-phase supply and nothing else. It bends 4 to 16 mm bar to 90° and 135° on a 2.2 kW motor, weighs 90 kg and replaces hand bending on exactly the residential and small commercial sites that make up most of the building work in Gujarat.
If the site already has a 415 V three-phase supply, the GW20 is the same machine on that supply; for volume above a few hundred stirrups a day, the CNC GTD4-10S is the next step.
The GW20S ships from Topall Impex in Delhi and, at 90 kg, travels as ordinary freight. Our Bakrol team commissions it and shows your operator how to set the stops. Pins and switchgear are stocked in Delhi and dispatched to Ahmedabad on request.
| Specification | GW20S |
|---|---|
| Bending Range | 4–16 mm |
| Preset Angle | 90° / 135° |
| Working Speed | 25–30 r/min |
| Angle Feed | Auto |
| Power | 2.2 kW |
| Voltage | 220 V |
| Weight | 90 kg |
| Dimension | 800 × 550 × 850 mm |
Specifications as published in the Topall Impex catalogue. Configurations can vary.
